Model Number: 2969411534
Series: Pro-Mod
Color: Matte Blue Frost
Number of Strings: 6
Orientation: Right-Hand
ELECTRONICS
Bridge Pickup: Seymour Duncan® Full Shred™ TB-10
Neck Pickup: Seymour Duncan® Alnico II Pro™ APH-1N
Pickup Color: Flat Parchment
Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
Pickup Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup
Auxiliary Switching 2-Position Mini Toggle Down/All Series, Up/All Parallel
Pickup Configuration: HH
Body Finish: Satin
Body Shape: Dinky™
Body Material: Alder
HARDWARE
Bridge: Gotoh® Custom 510 Tremolo
Hardware Finish: Chrome
Tremolo Arm: Gotoh®
Tuning Machines: Charvel®-Branded Die-Cast Locking
Control Knobs: Strat®-Style Skirt
Switch Tip: Parchment
Saddle Height Wrench: Yes
Neck Material: Caramelized Maple
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Finish: Hand-Rubbed Urethane
Neck Shape: Speed Neck with Rolled Fingerboard Edges
Neck Binding: None - Rolled Fingerboard Edges
Scale Length: 25.5" (64.77 cm)
Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Caramelized Maple
Number of Frets: 24
Fret Size: Jumbo
Nut Material: Graph Tech® TUSQ® XL
Nut Width: 1.6875" (42.86 mm)
Position Inlays: 4mm Pearloid Dot
Truss Rod: Nut Heel-Mount Truss Rod Adjustment Wheel

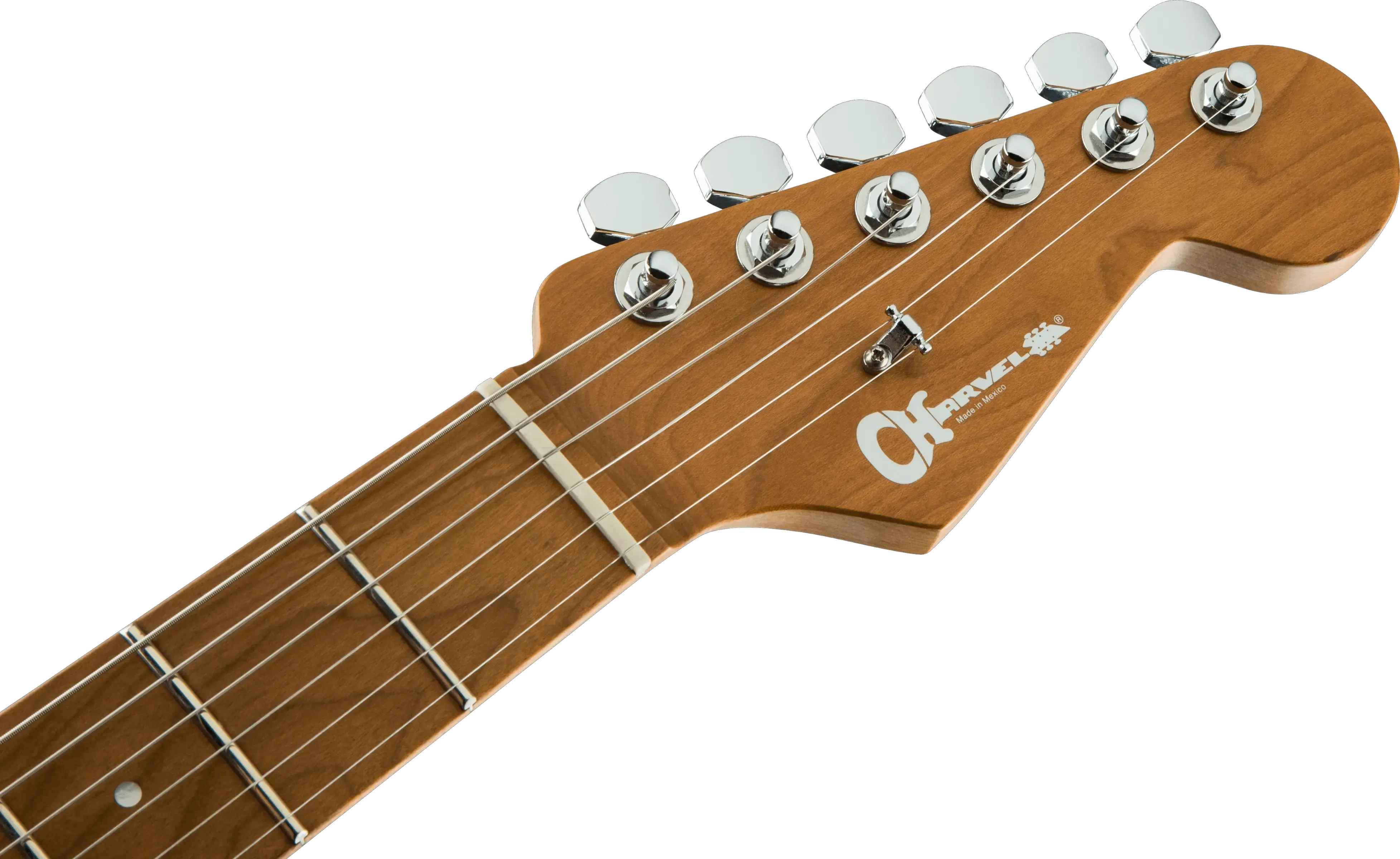

Headstock: Licensed Fender® Stratocaster®
Neck Plate None: - 4-Bolt Sculpted Heel
