BODY MATERIAL: Poplar
BODY FINISH: Gloss
BODY SHAPE: Soloist™
NECK
NUMBER OF STRINGS: 6
NECK MATERIAL: Maple
NECK CONSTRUCTION: Neck-Through-Body with Graphite Reinforcement and Scarf Joint
NECK BINDING: 1-Ply White
NECK FINISH: Gloss Color Matched
SCALE LENGTH: 25.5" (64.77 cm)
FINGERBOARD MATERIAL: Laurel
FINGERBOARD RADIUS: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
NUMBER OF FRETS: 24
FRET SIZE: Jumbo
NUT MATERIAL: Floyd Rose® Special Locking
NUT WIDTH: 1.6875" (42.86 mm)
POSITION INLAYS: Pearloid Sharkfin
TRUSS ROD: Dual-Action
TRUSS ROD NUT: Truss Rod Adjustment at Nut
ELECTRONICS
BRIDGE PICKUP: Duncan Designed™ HB-103B
MIDDLE PICKUP: Duncan Designed™ HR-101 Hot Rails®
NECK PICKUP: Duncan Designed™ HR-101 Hot Rails®
CONTROLS: Volume, Tone
SWITCHING: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
CONFIGURATION: HSS
HARDWARE
BRIDGE: Floyd Rose® Special Double-Locking Tremolo (Recessed)
HARDWARE FINISH: Black

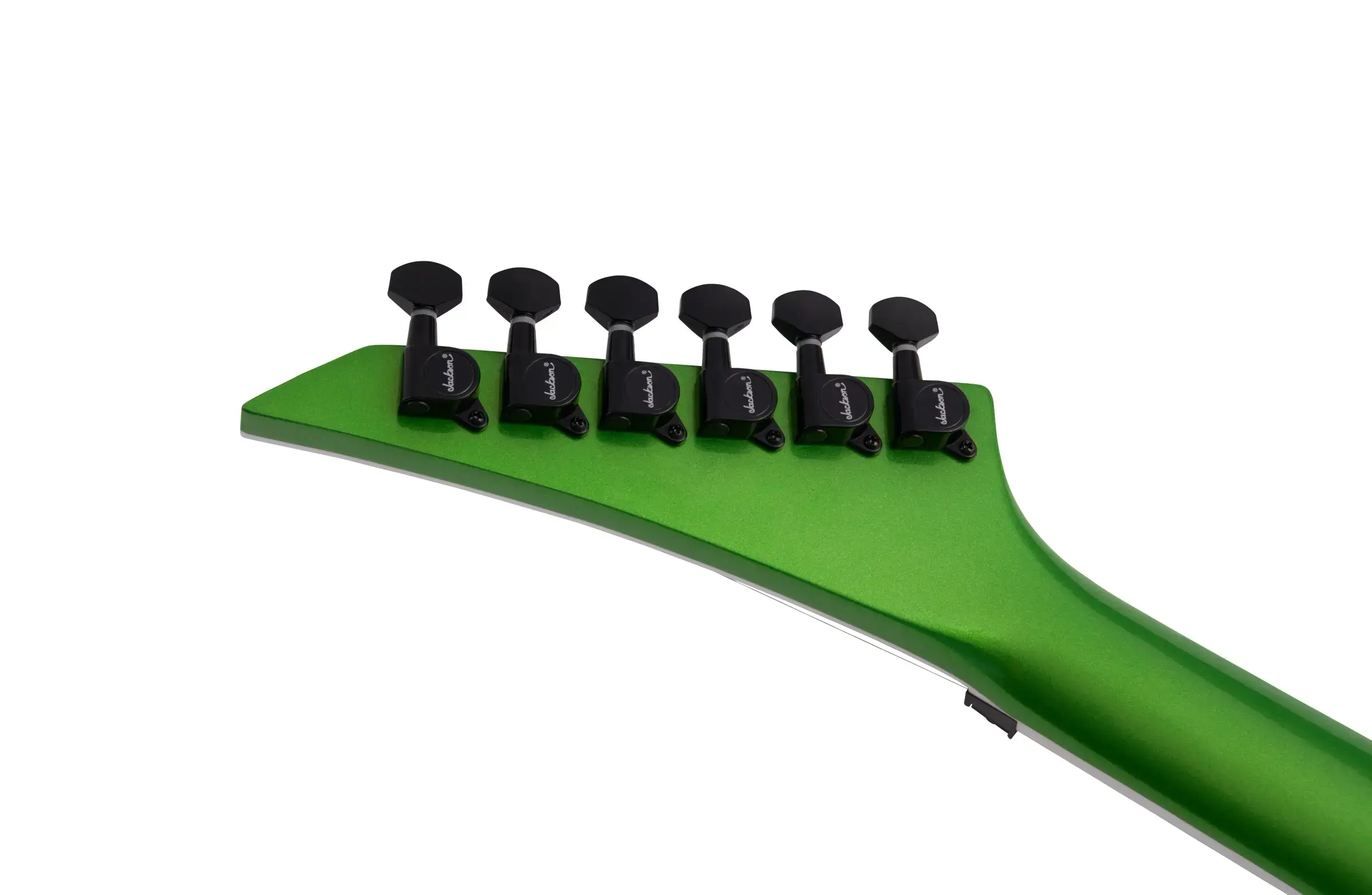

TUNING MACHINES: Jackson® Sealed Die-Cast
CONTROL KNOBS: Dome-Style
SWITCH TIP: Black
