Basic Information:
Keyboard: Smart Scaled Hammer Action Keyboard
Number of Keys: 88
Touch Response: 5 sensitivity levels, off
Sound Source: Multi-Dimentional Morphing AiR
Maximum Polyphony: 192
Number of Tones: 19
Songs:
・Built-in Songs: 60
・Lesson Function: Part ON/OFF (Part Select: right hand, left hand, both hands)
・Song Expansion (User Songs): 10 songs (max.) Up to approximately 100 KB/song
・Demo Song: 1
Recorder:
[MIDI Recorder]
2 tracks (1 system track ＋ 1 solo track), 1 song
Real-time recording, playback
[Audio Recorder]
To USB memory: max. 99 songs, approximately 25 min/song
Pedal:

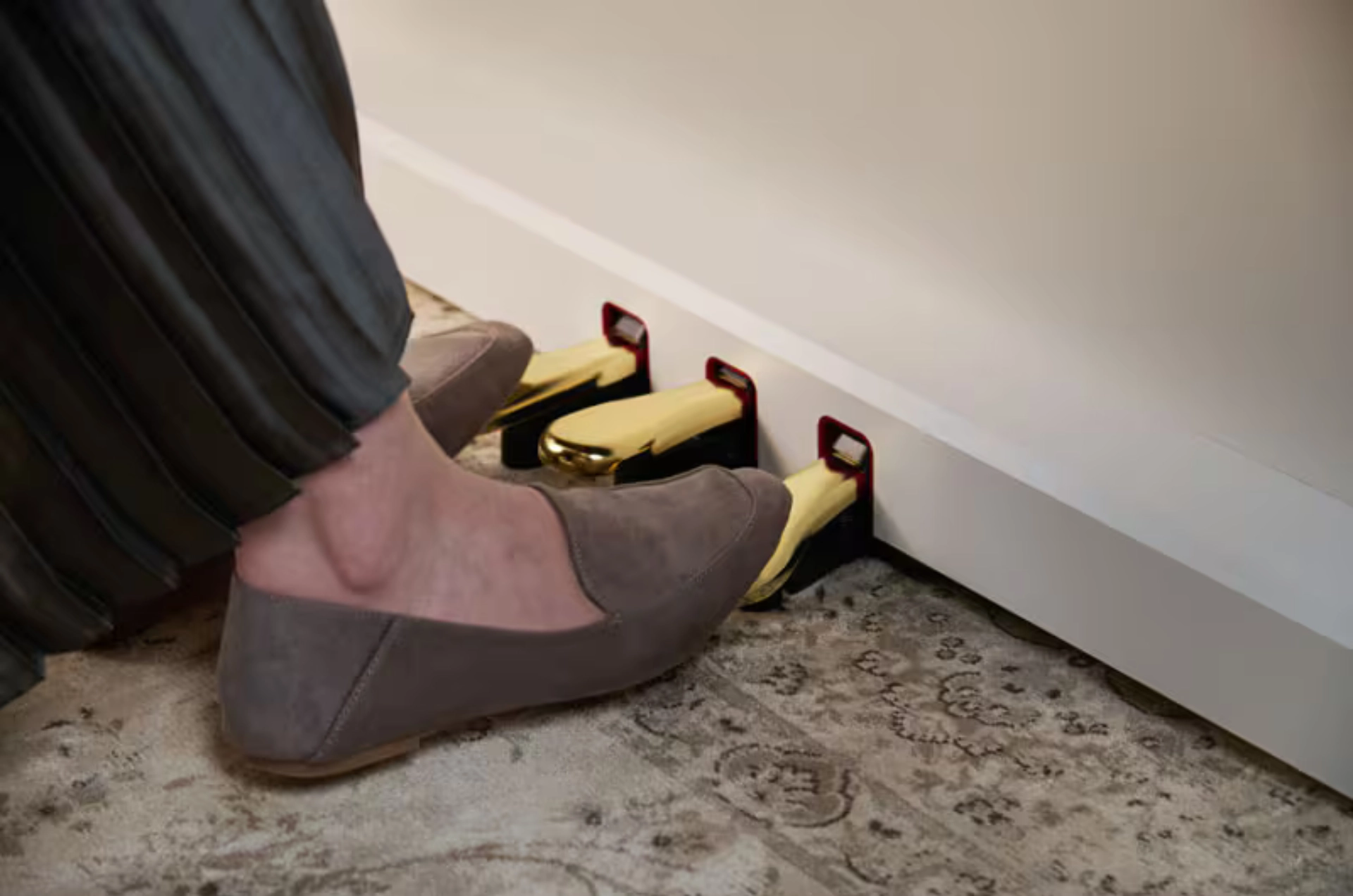

・3 built-in pedals (included): damper (2 levels, off), soft (2 levels, off), sostenuto
・Half-Damper Pedal Operation: Yes
Speaker:
・Size: 12cm x 2
・Speaker system: 2-channel/2-speaker
Amplifiers: 20W+20W (maximum output)
Power Supply:
[AC Adaptor]
AD-E24250LW
Power Consumption: 20W
Dimensions: 1,401ｘ440ｘ869 mm (w/o music stand)
Weight: 47.1 kg
Color: White
Included Accessories:
Wireless MIDI & AUDIO Adaptor (WU-BT10),
Music Stand, AC Adaptor (AD-E24250LW),
Adjustable-height Piano Bench, Headphone Hook
Key Features:
Acoustic Simulator:
・ 88-Key Digital Scaling
・ Hammer Response (4 levels, tone, off)
・ Key Off Response
・ String Resonance (4 levels, tone, off)
・ Damper Resonance (4 levels, tone, off)
・ Key Action Noise (4 levels, tone, off)
・ Damper Noise (4 levels, tone, off)
・ Lid Simulator (4 levels, tone)
Effects:
・ Sound Mode: Hall Simulator (4 types) / Reverb (4 types), Surround, off
・Chorus (4 levels, tone)
・Brilliance
Layer/Split: Yes
Octave Shift: -2 octaves ~ 0 ~ +2 octaves
Transpose: -12 semitones ~ 0 ~ +12 semitones
Tuning Control: A4 = 415.5 Hz ~ 440.0 Hz ~ 465.9 Hz
Scales: Equal temperament + 16 variations
Metronome:
Off, 1 to 9 beats; tempo range: 20 to 255
Tempo Marking Setting, Tap Tempo
Audio Playback: Yes
Others:
Top Board Open/Close: Yes (1 level)
Concert Play: App：CASIO MUSIC SPACE
Headphone mode: Yes
Duet Mode: Yes
Volume Sync EQ: Yes
Others:
・Touch button：6（Tone Select button：1）
・Slide-type keyboard cover
・Auto Power Off
・Auto Resume
・Operation Lock (ON / OFF / AUTO)
Input/Output Terminals:
USB port: Yes (Type-A, Type-B)
Connector for 3-pedal unit: Yes
PHONES/OUTPUT: 2: Stereo standard phone jack (TRS phone)
Extended Functions:
Connection to App: Yes(CASIO MUSIC SPACE) with Remote Controller
Wireless Functionality:
・Included：Wireless MIDI & AUDIO Adaptor (WU-BT10）
・Bluetooth Audio Profile：A2DP, Codec：SBC
・Bluetooth MIDI Profile: GATT (MIDI over Bluetooth® Low Energy)
MIDI: Yes (Using the Wireless MIDI & Audio Adaptor or USB port B)
