Amp Type: SOLID, CLEAN, CRUNCH, LEAD, MODERN
Tube Type: EL34, 6L6GC, KT88, EL84, 6V6
Effects: BOOSTER (*White/Amber/Green), REVERB (*Hall/Room/Plate/Spring), NOISE GATE (*OFF/1/2/3), FX LOOP (*PARALLEL/SERIAL), SPEAKER SIMULATION (*Impulse Response) *Only selectable in the THR HD_H Utiity

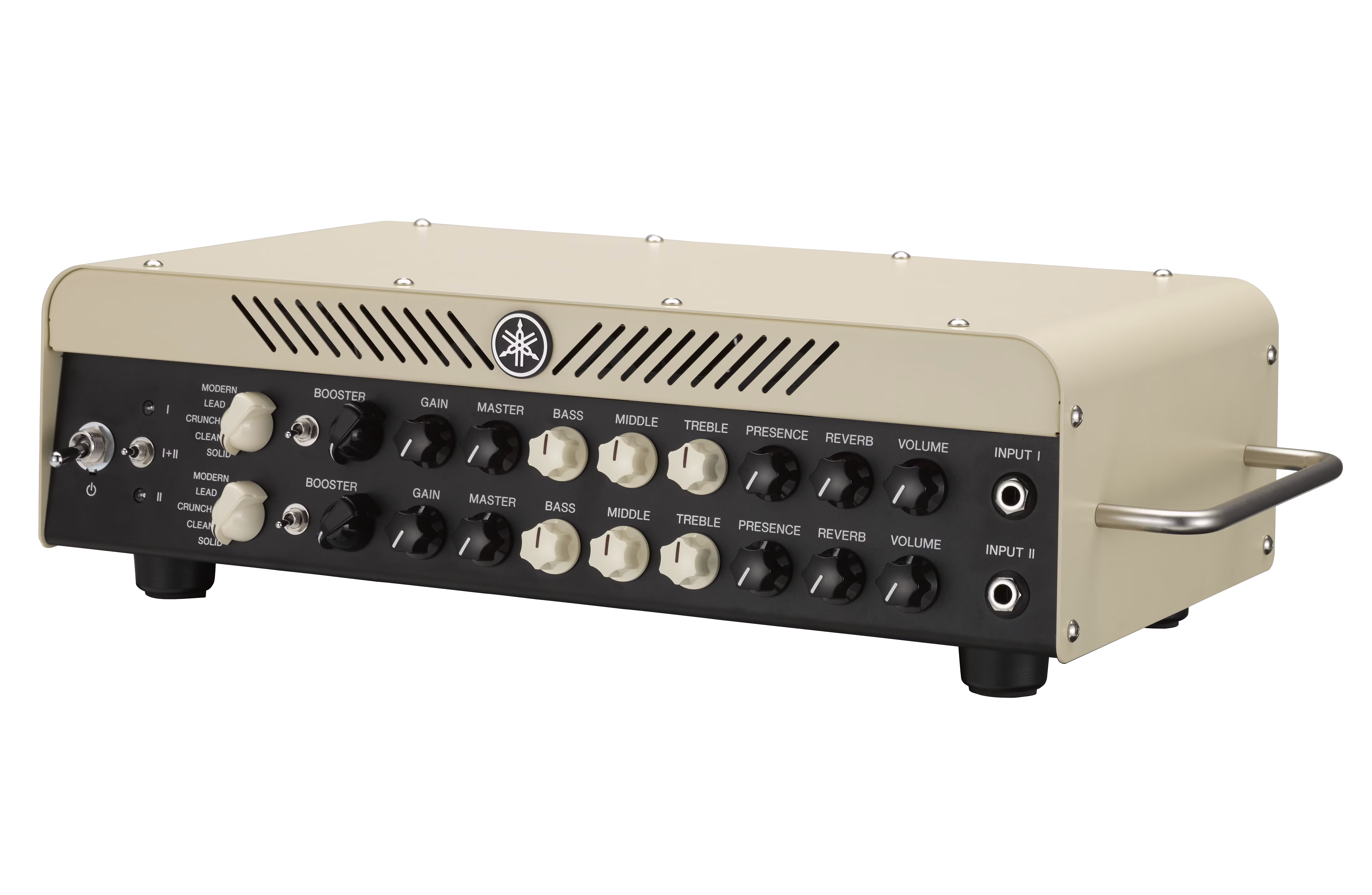

Control SW Front: POWER, AMP SELECT, BOOSTER x2
Control Knob Front
AMP I: AMP TYPE, BOOSTER, GAIN, MASTER, BASS, MIDDLE, TREBLE, PRESENCE, REVERB, LEVEL
AMP II: AMP TYPE, BOOSTER, GAIN, MASTER, BASS, MIDDLE, TREBLE, PRESENCE, REVERB, LEVEL

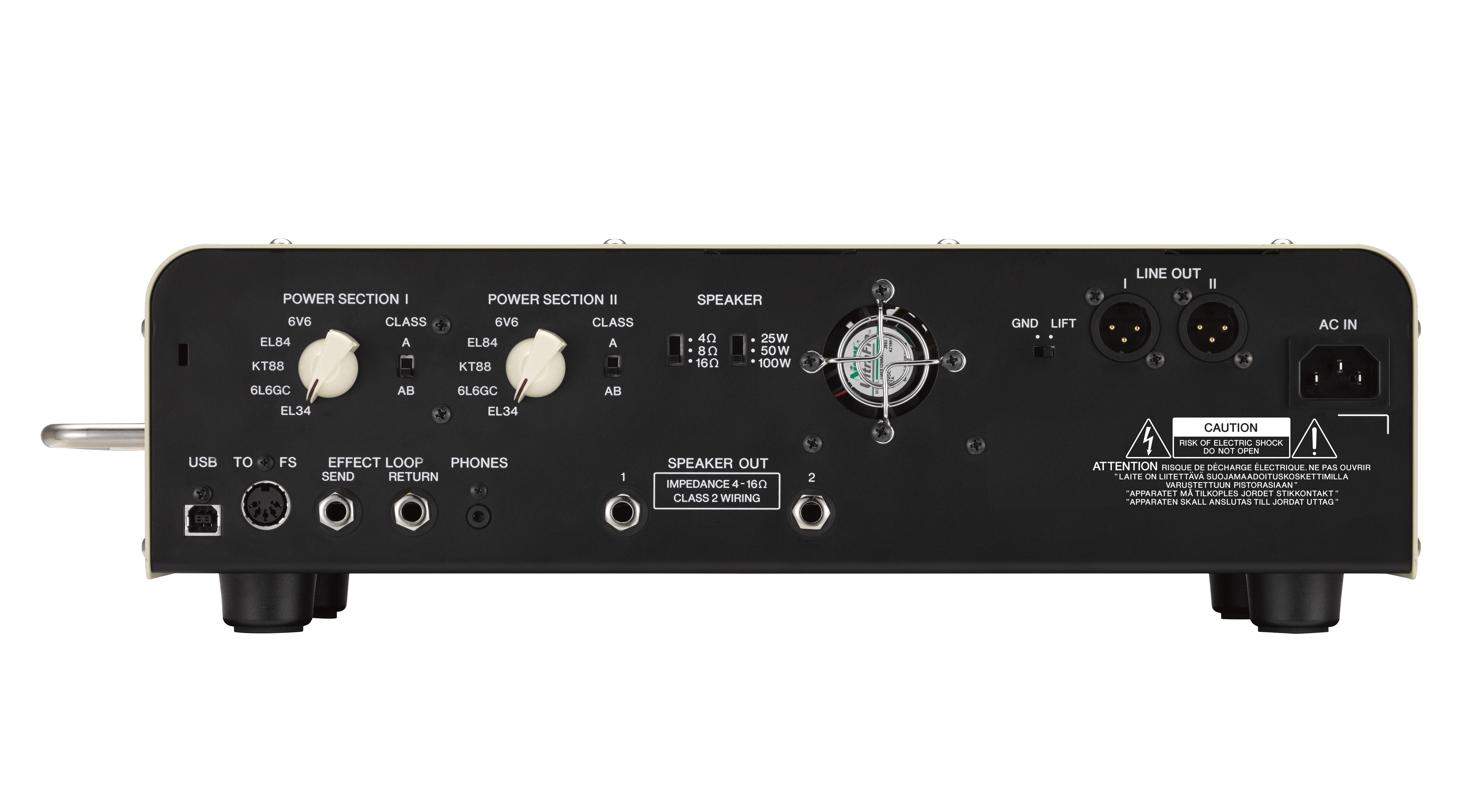

Control SW Rear: CLASS A/AB x2, GND LIFT, IMPEDANCE 4/8/16Ω, POWER OUTPUT 25/50/100W
Control Knob Rear: TUBE TYPE SELECT x2
Input/Output Front: INPUT I (1/4" Phone), INPUT II (1/4" Phone)
Input/Output Rear: PHONES (1/8" Mini Stereo), FOOTSWITCH (5pin DIN), EFFECT LOOP SEND/RETURN (Stereo 1/4" Phone), SPEAKER OUT 1 (1/4" Phone), SPEAKER OUT 2 (1/4" Phone), LINE OUT I (XLR), LINE OUT II (XLR), AC IN Jack
USB (TO HOST): Yes
Power Amplifier Type: ClassD
Rated Power Output: Single Amp: 100W (8/16Ω) 50W (4Ω), Dual Amp: 100W (50W+50W)
A/D Resolution: 24 bit + 3 bit floating
A/D Sampling Rate: 44.1 kHz
D/A Resolution: 24 bit
D/A Sampling Rate: 44.1 kHz
Input Level
Input: -10 dBu / 1MΩ
RETURN: 0 dBu / 10kΩ
Output Level
PHONES: 10 mW / 30Ω
SEND: 0 dBu / 10kΩ
LINE OUT: +4 dBu / 600Ω
Power Consumption: 60W
Power
Voltage: 100 - 240V
Frequency: 50 / 60 Hz
PC Interface Type: USB 2.0
Body
Dimensions: W445 x D248 x H125 mm
Weight: 4.2 kg
