Maximum number of simultaneous effects: 6 effects
User patch memories: 100
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)

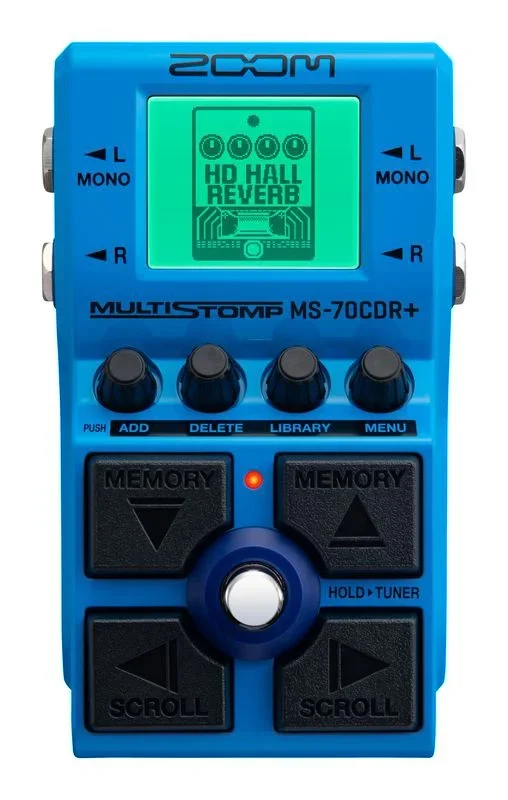

Display: 160×128 dot-matrix LCD
Inputs: L/R Standard mono phone jacks Rated input level: −20 dBu Input impedance (line): 470 kΩ
Outputs L/R Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N: 122 dB
Noise floor (residual noise): L/R –100 dBu

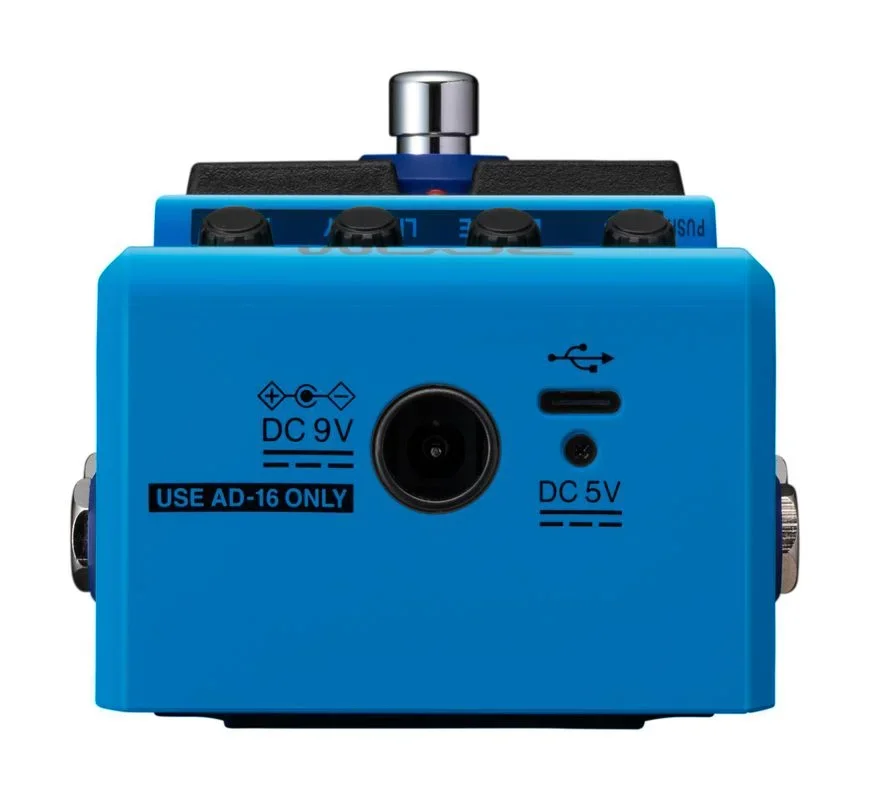

Power: AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated operation times • These values are "approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions." Alkaline batteries: about 7 hours (about 5 hours using using batteries) NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input) Lithium batteries: about 14 hours (about 10 hours using stereo input)
USB: Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported.
Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
Weight: 368 g (excluding batteries) 415 g (including batteries)
Note: 0 dBu = 0.775 V
