מולטי אפקט

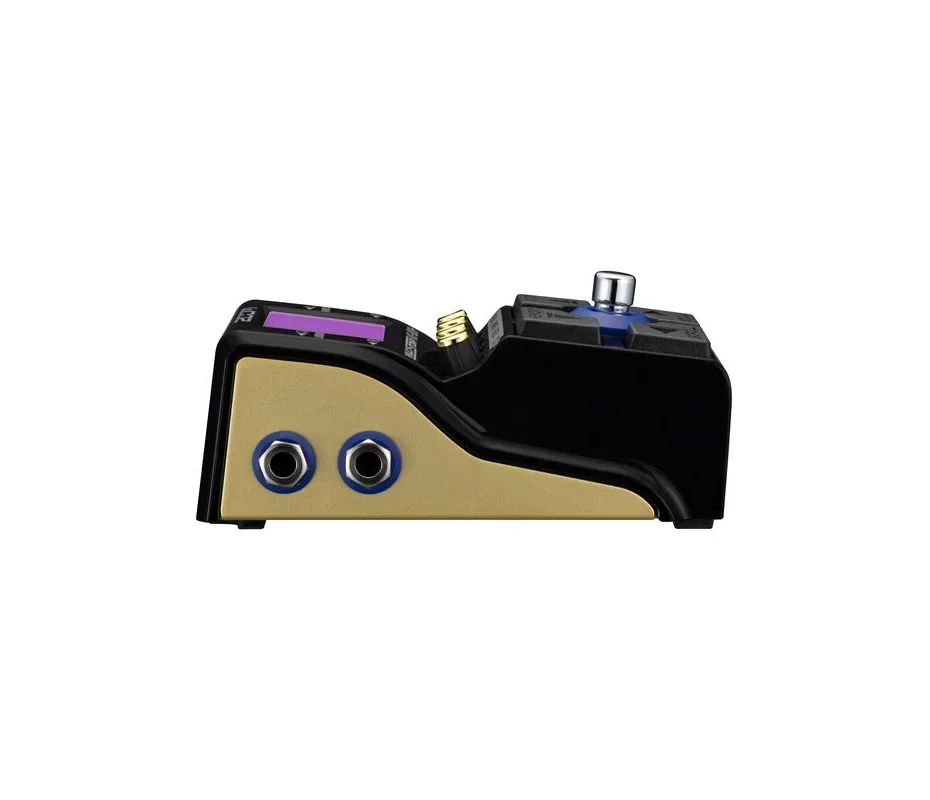

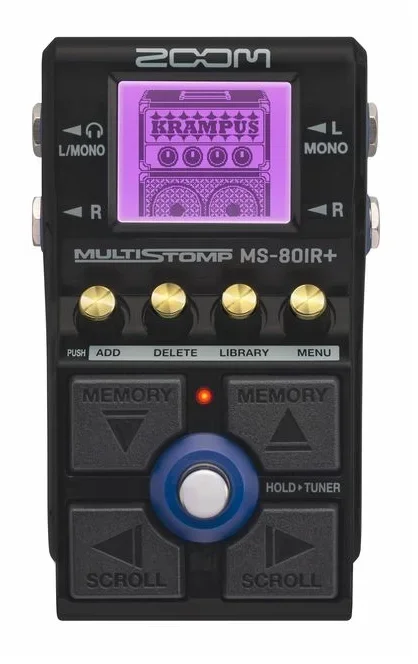

+Zoom MS80IR

Maximum number of simultaneous effects: 1 amplifier, 1 studio ambience and 1 other effect
User patch memories: 80
Sampling frequency :44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
Display: 160×128 dot-matrix LCD
Inputs L/R : Standard mono phone jacks
Rated input level: −20 dBu
Input impedance (line): 470 kΩ
Outputs L/MONO/headphone: Standard stereo phone jacks (combined line/headphone)
Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Maximum output level: 20 mW + 20 mW (when 32Ω load)
R Standard mono phone jacks
Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N : 122 dB
Noise floor (residual noise): L/R –100 dBu
Power: AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
• USB bus power is supported.
Estimated operation times using batteries: Alkaline batteries: about 3.5 hours (about 3 hours using stereo input)
NiMH batteries (1900 mAh): about 4 hours (about 3.5 hours using stereo input)
Lithium batteries: about 7.5 hours (about 6.5 hours using stereo input)
• These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
USB : Port: USB 2.0 Type-C
Supported cable type: Type-C
Handy Guitar Lab: USB 1.1 Full Speed
Audio interface: USB 2.0 Full Speed, 44.1kHz/32-bit, 2 in 2 out
• Use a USB cable that supports data transfer.
Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
Weight: 369 g (excluding batteries)
416 g (including batteries)
Note: 0 dBu = 0.775 V
